PAHostedDomain

The PAHostedDomain APS Type is used to create and manage DNS zones for the hosted domains.

Schema

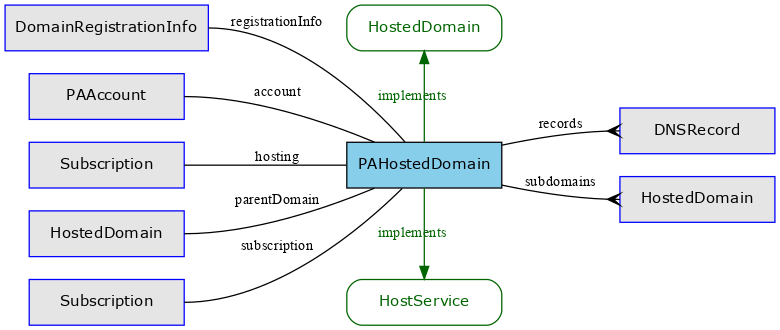

The considered APS type (download) extends the HostedDomain, HostService APS type(s) and looks as follows:

{
  "name": "PAHostedDomain",
  "id": "http://parallels.com/aps/types/pa/dns/zone/1.1",
  "apsVersion": "2.0",
  "implements": [
    "http://aps-standard.org/types/dns/zone/1.1",
    "http://www.parallels.com/pa/pa-core-services/host-management/HostService/1.0"
  ],
  "relations": {
    "registrationInfo": {
      "type": "http://parallels.com/aps/types/pa/dns/zoneinfo/1.0"
    },
    "account": {
      "type": "http://parallels.com/aps/types/pa/account/1.0",
      "required": true
    }
  },
  "properties": {
    "zoneId": {
      "type": "integer",
      "final": true
    },
    "nameServers": {
      "type": "array",
      "items": {
        "type": "string"
      }
    },
    "dsRecord": {
      "type": "DSRecord"
    }
  },
  "structures": {
    "DSRecord": {
      "type": "object",
      "properties": {
        "algorithm": {
          "type": "integer"
        },
        "digestId": {
          "type": "integer"
        },
        "digest": {
          "type": "string"
        },
        "tag": {
          "type": "integer"
        }
      }
    }
  }
}

Properties

NAME	TYPE	ATTRIBUTES	DEFAULT	DESCRIPTION
zoneId	Integer	Not Required Final		Domain Zone id
nameServers	Array of String	Not Required		List of name servers
dsRecord	DSRecord	Not Required		DSRecord DSRecord

Relationship

NAME	TYPE	REQUIRED	DESCRIPTION
registrationInfo	DomainRegistrationInfo	No	Registration information related to this domain DomainRegistrationInfo
account	PAAccount	Yes	Account related to this domain PAAccount

Structures

DSRecord

DSRecord.

NAME	TYPE	ATTRIBUTES	DEFAULT	DESCRIPTION
algorithm	Integer	Not Required		Algorithm.
digestId	Integer	Not Required		Dicest id
digest	String	Not Required		Digest.
tag	Integer	Not Required		Tag.

Examples

Create Domain Zone

Create a domain zone isv1.test:

POST /aps/2/resources
"APS-Subscription-ID": "93959b89-365f-46e9-b838-8bb1f445cfa3"

{
   "aps": {
      "type": "http://parallels.com/aps/types/pa/dns/zone/1.1"
   },
   "name": "isv1.test",
   "hosting": {
      "aps": {
         "link": "weak",
         "id": "93959b89-365f-46e9-b838-8bb1f445cfa3"
      }
   }
}

A typical response looks as follows:

HTTP/1.1 200 OK

{
  "aps": {
    "type": "http://parallels.com/aps/types/pa/dns/zone/1.1",
    "id": "21947ac1-6509-4629-95c3-62151fd65a9d",
    "status": "aps:ready",
    "revision": 4,
    "modified": "2016-10-03T10:15:11Z",
    "subscription": "93959b89-365f-46e9-b838-8bb1f445cfa3",
    "package": {
      "id": "e86ef200-5751-4c2c-b342-e65483ede6d0",
      "href": "/aps/2/packages/e86ef200-5751-4c2c-b342-e65483ede6d0"
    }
  },
  "hosts": [
      "857afca8-cc8e-4067-b3a2-5cbb9a8e3b22"
  ]
  "name": "isv1.test",
  "nameServers": [
      "a.isv1.apsdemo.org"
  ]
  "serviceDescription": "Domain subscription isv1.test",
  "serviceName": "Domains",
  "zone": {
    "TTL": 3600,
    "adminEmail": "isv1@aps.test",
    "expire": 2419200,
    "refresh": 14400,
    "retry": 7200
  },
  "zoneId": 1,
  "account": {
    "aps": {
      "link": "strong",
      "href": "/aps/2/resources/e489cb96-e988-475a-854b-0d0a67a18aed",
      "id": "e489cb96-e988-475a-854b-0d0a67a18aed"
    }
  },
  "hosting": {
      "aps": {
         "link": "weak",
         "href": "/aps/2/resources/93959b89-365f-46e9-b838-8bb1f445cfa3",
         "id": "93959b89-365f-46e9-b838-8bb1f445cfa3"
      }
  },
  "records": {
    "aps": {
      "link": "collection",
      "href": "/aps/2/resources/21947ac1-6509-4629-95c3-62151fd65a9d/records"
    }
  },
  "subdomains": {
    "aps": {
      "link": "collection",
      "href": "/aps/2/resources/21947ac1-6509-4629-95c3-62151fd65a9d/subdomains"
    }
  }
}

Create DNS Record

In the isv1.test domain zone, create an A record for the VPS:

POST /aps/2/resources
"APS-Subscription-ID": "93959b89-365f-46e9-b838-8bb1f445cfa3"

{
   "aps": {
      "type":"http://parallels.com/aps/types/pa/dns/record/a/1.0"
   },
   "zone": "isv1.test",
   "source": "vps1001.isv1.test.",
   "address" : "10.10.10.111"
}

A typical response looks as follows:

HTTP/1.1 200 OK

{
   "aps": {
      "type": "http://parallels.com/aps/types/pa/dns/record/a/1.0",
      "id": "d1d3800b-0f4f-48da-86a3-2244085cec5a",
      "status": "aps:ready",
      "revision": 4,
      "modified": "2016-10-03T11:22:24Z",
      "subscription": "93959b89-365f-46e9-b838-8bb1f445cfa3",
      "package": {
         "id": "e86ef200-5751-4c2c-b342-e65483ede6d0",
         "href": "/aps/2/packages/e86ef200-5751-4c2c-b342-e65483ede6d0"
      }
   },
   "RRState": "active",
   "TTL": 0,
   "address": "10.10.10.111",
   "data": "10.10.10.111",
   "recordId": 1,
   "source": "vps1001",
   "sourceFQN": "vps1001.isv1.test.",
   "replacedBy": {
      "aps": {
         "link": "collection",
         "href": "/aps/2/resources/d1d3800b-0f4f-48da-86a3-2244085cec5a/replacedBy"
      }
   },
   "replaces": {
      "aps": {
         "link": "collection",
         "href": "/aps/2/resources/d1d3800b-0f4f-48da-86a3-2244085cec5a/replaces"
      }
   },
   "zone": {
      "aps": {
         "link": "strong",
         "href": "/aps/2/resources/21947ac1-6509-4629-95c3-62151fd65a9d",
         "id": "21947ac1-6509-4629-95c3-62151fd65a9d",
         "subscription": "93959b89-365f-46e9-b838-8bb1f445cfa3"
      }
   }
}
