RDEReportTemplate¶

In this document:

Schema
Properties
Relationship
Custom Operations
Structures
Examples

Schema ¶

The considered APS type (download) looks as follows:

{
  "name": "RDEReportTemplate",
  "id": "http://www.odin.com/rde/report-template/1.5",
  "apsVersion": "2.0",
  "implements": [
    "http://aps-standard.org/abstract/types/unlimited-resource/1.0"
  ],
  "relations": {
    "reportFiles": {
      "type": "http://www.odin.com/rde/report-file/1.6",
      "collection": true
    },
    "tenant": {
      "type": "http://www.odin.com/rde/tenant/2.2"
    },
    "customization": {
      "type": "http://www.odin.com/rde/base-report-customization/1.1"
    },
    "dataSet": {
      "type": "http://www.odin.com/rde/data-set/1.0"
    }
  },
  "properties": {
    "commonName": {
      "type": "string"
    },
    "parameters": {
      "type": "ReportTemplateParameters"
    },
    "format": {
      "type": "string",
      "enum": [
        "CSV",
        "XML",
        "XLSX",
        "JSON"
      ]
    },
    "sourceType": {
      "type": "string",
      "default": "API",
      "enum": [
        "API",
        "UX1"
      ]
    },
    "notifyByEmail": {
      "type": "boolean"
    },
    "eventType": {
      "type": "string",
      "enum": [
        "PERIODIC",
        "DAILY",
        "MONTHLY",
        "ONETIME",
        "ON_INVOICE"
      ]
    },
    "periodicTask": {
      "type": "string"
    },
    "lastReportDate": {
      "type": "string",
      "format": "date-time"
    },
    "nextReportDate": {
      "type": "string",
      "format": "date-time"
    },
    "reportApsActorId": {
      "type": "string"
    },
    "reportApsIdentityId": {
      "type": "string"
    }
  },
  "operations": {
    "runScheduledTask": {
      "path": "run-scheduled-task",
      "verb": "GET",
      "errorResponse": {
        "type": "object"
      },
      "parameters": {
        "id": {
          "kind": "path",
          "type": "string"
        }
      }
    }
  },
  "structures": {
    "ReportTemplateParameters": {
      "type": "object",
      "properties": {
        "period": {
          "type": "string",
          "enum": [
            "P1D",
            "P1M"
          ]
        },
        "startDay": {
          "type": "integer"
        },
        "startDate": {
          "type": "string",
          "format": "date-time"
        },
        "endDate": {
          "type": "string",
          "format": "date-time"
        }
      }
    }
  }
}

The APS type is used to manage a collection of APS resources. To get a list of resources from that collection, use the following API call:

GET  /aps/2/collections/rde-report-templates?<RQL-filter>

Properties ¶

NAME	TYPE	ATTRIBUTES	DEFAULT
commonName	String	Not Required
parameters	ReportTemplateParameters	Not Required
format	Enum	Not Required
sourceType	Enum	Not Required	API
notifyByEmail	Boolean	Not Required
eventType	Enum	Not Required
periodicTask	String	Not Required
lastReportDate	String	Not Required
nextReportDate	String	Not Required
reportApsActorId	String	Not Required
reportApsIdentityId	String	Not Required

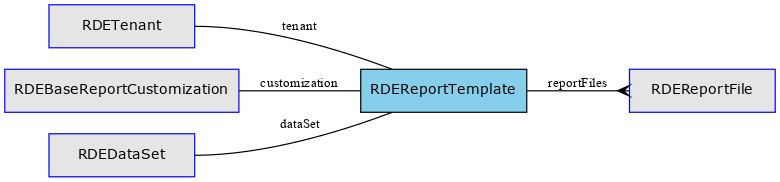

Relationship ¶

NAME	TYPE	REQUIRED
reportFiles	Collection of RDEReportFile	No
tenant	RDETenant	No
customization	RDEBaseReportCustomization	No
dataSet	RDEDataSet	No

Custom Operations ¶

OPERATION	VERB	PATH	RETURNS	Description
runScheduledTask	GET	/run-scheduled-task

runScheduledTask¶

HTTP Request

GET /aps/2/resources/{aps-id}/run-scheduled-task

Description

Parameters

PARAMETER	TYPE	DESCRIPTION
id	String

Returns

Structures ¶

ReportTemplateParameters¶

NAME	TYPE	ATTRIBUTES
period	Enum	Not Required
startDay	Integer	Not Required
startDate	String	Not Required
endDate	String	Not Required

Examples ¶

This section illustrates examples on managing report engines and reports using the considered APS type.

Schedule Report Generation¶

Usually, this is the first action in the RDE lifecycle. There are the following options depending on the eventType property:

"eventType":"ONETIME" - generate one report immediately.
"eventType":"PERIODIC" - generate reports with a period defined in the respective periodic task.
"eventType":"ON_INVOICE" - generate a report every time a new invoice appears.

POST /aps/2/resources

{
   "aps":{
      "type":"http://www.odin.com/rde/report-template/1.1"
   },
   "commonName":"NW Finance",
   "parameters":{
      "startDate":"2018-09-09T00:00:00Z",
      "endDate":"2018-10-05T23:59:59Z"
   },
   "format":"JSON",
   "notifyByEmail":false,
   "eventType":"ONETIME"
}

The response will look like this:

HTTP/1.1 202 Accepted

{
   "aps": {
      "type": "http://www.odin.com/rde/report-template/1.1",
      "id": "07cd68e6-eb96-47c4-9936-a89e27ee790d",
      "status": "aps:provisioning",
      "revision": 3,
      "modified": "2018-10-09T09:23:52Z",
      "package": {
         "id": "2a1f2c8e-02a6-48c1-874d-e7617bc247bf",
         "href": "/aps/2/packages/2a1f2c8e-02a6-48c1-874d-e7617bc247bf"
      }
   },
   "commonName": "NW Finance",
   "eventType": "ONETIME",
   "format": "JSON",
   "notifyByEmail": false,
   "parameters": {
      "endDate": "2018-10-10T23:59:59Z",
      "startDate": "2018-10-09T00:00:00Z"
   },
   "reportApsActorId": "2ebda147-e0c6-4649-ab8f-9c14bfb2262e",
   "reportApsIdentityId": "2fd41bc4-7e89-43cd-99bc-cdaa3283a4eb",
   "reportFiles": {
      "aps": {
         "link": "collection",
         "href": "/aps/2/resources/07cd68e6-eb96-47c4-9936-a89e27ee790d/reportFiles"
      }
   },
   "tenant": {
      "aps": {
         "link": "weak",
         "href": "/aps/2/resources/18b57549-da3e-4e16-bd10-254aec5c2118",
         "id": "18b57549-da3e-4e16-bd10-254aec5c2118"
      }
   }
}

Get List of Reports¶

To get a list of reports generated by a certain generator, send the following request and specify the APS ID of the generator (for example, find it in the previous example):

GET /aps/2/resources/07cd68e6-eb96-47c4-9936-a89e27ee790d/reportFiles

The response will look like this:

HTTP/1.1 200 OK

[
   {
      "aps": {
         "modified": "2018-10-09T09:24:22Z",
         "id": "a7f79686-f6a6-4319-bb8b-4a40ed2ecbb3",
         "type": "http://www.odin.com/rde/report-file/1.1",
         "status": "aps:ready",
         "revision": 6
      },
      "generateDate": "2018-10-09T09:23:54Z",
      "filePath": "https://rde4.blob.core.windows.net/rdecontainer/NW%20Finance.a7f79686-f6a6-4319-bb8b-4a40ed2ecbb3.2018-10-09.09-23-54.912+0000.json.gz?sig=%2BoSd89NgbR%2FOcwSDnhRaOVQ1cjw1yYLY85hqDRW7Y4s%3D&api-version=2016-05-31&st=2018-10-09T09%3A13%3A55Z&se=2019-01-07T09%3A13%3A55Z&sv=2016-05-31&sp=rwd&sr=b",
      "format": "JSON",
      "name": "NW Finance",
      "eventType": "ONETIME",
      "parameters": {
         "endDate": "2018-10-10T23:59:59Z",
         "startDate": "2018-10-09T00:00:00Z"
      },
      "status": "READY",
      "tmpPath": "https://rde4.blob.core.windows.net/rdecontainer/NW%20Finance.a7f79686-f6a6-4319-bb8b-4a40ed2ecbb3.2018-10-09.09-23-54.912+0000.json.gz?sig=r%2FIlLy34mb7CtQhbW49jDoP1hhwgczQQULBDsDXVA0I%3D&api-version=2016-05-31&st=2018-10-09T09%3A23%3A55Z&se=2018-10-11T09%3A23%3A55Z&sv=2016-05-31&sp=r&sr=b"
   }
]

Collection of scheduled Reports (report generators)¶

To get a list of all report generators created for an account, the latter must send the following request:

GET /aps/2/collections/rde-report-templates

The response must contain the requested array of the reports both periodic and one time, similar to the following:

HTTP/1.1 200 OK

[
   {
      "commonName": "NW Finance",
      "reportApsActorId": "77292881-8ea0-4238-99a2-2ea62080bf1e",
      "reportApsIdentityId": "a0ecae40-c18e-4a40-8847-28263ff89f55",
      "aps": {
         "modified": "2018-10-09T08:00:27Z",
         "id": "60dea8ec-eea5-4ac8-8426-6f6b67bdbb2b",
         "type": "http://www.odin.com/rde/report-template/1.1",
         "status": "aps:ready",
         "revision": 7
      },
      "lastReportDate": "2018-10-09T08:00:29Z",
      "notifyByEmail": false,
      "format": "JSON",
      "eventType": "ONETIME",
      "parameters": {
         "endDate": "2018-10-05T23:59:59Z",
         "startDate": "2018-09-09T00:00:00Z"
      }
   }
]
