Application Methods

The user panel declares specific methods in the aps.app namespace that application views can define or re-define to specify the required behavior of those methods.

In this document:

Workflow

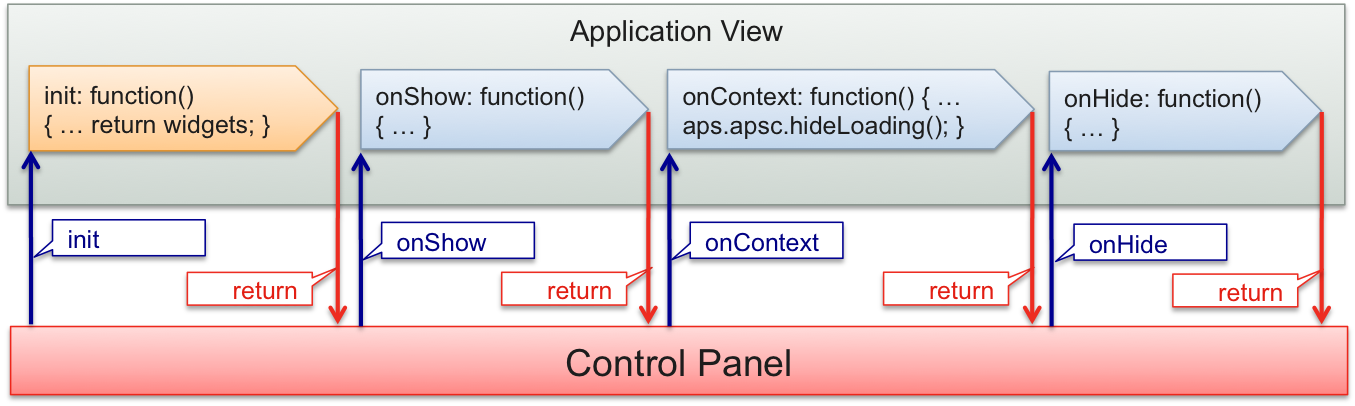

In the single page technology, each of the application UI view contains 4 flow methods that the UX1 calls one after another: init, onShow, onContext, and onHide.

../../../../_images/flow-api.png

METHOD

DESCRIPTION

init

Initializes the view when the user opens it for the first time. Normally, it returns a hierarchy of widget objects that UX1 loads. UX1 does not call this method when it opens the view after the first time.

onShow

Used to prepare widgets before making them visual. For example, it can reset the widget contents when the user opens the view for the second and any subsequent time.

onContext

The main data processing method. It queries data sources and then refreshes the widgets.

onHide

Prepares the view for closing. UX1 calls this method when the user navigates to another view or quits UX1.

Transition

UX1 detects if a navigation button declared in the view metadata is clicked. When this happens, UX1 triggers an event that the respective handler in the current application view processes.

../../../../_images/nav-controls.png

METHOD

DESCRIPTION

onCancel

Processes the Cancel button on-click event.

onNext

Processes the Next button on-click event. It is used, when the view is a wizard step.

onPrev

Processes the Previous (Back) button on-click event. It is used, when the view is a wizard step.

onSubmit

Processes the Submit button on-click event.
