Authorization through IDP

The Identity Provider (IDP) service based on the Oauth2 framework with the OpenID Connect extension can be added to the platform to authenticate and authorize all users and various client systems integrated with the platform.

Concepts

When using the IDP, an API client must receive a user’s security token from the IDP and then use that token for authorizing its requests on the APS bus.

Security Tokens

The IDP generates three types of security tokens:

• access_token is an access token declared in OAuth 2. It is not intended for carrying identification data about a user, although it can. The API client does not use this token.

• id_token is a user identification token, which must contain the user’s information including the user’s authentication status as specified by OpenID Connect. Its format is defined by JWT specification. When the platform receives a token, it validates this token in accordance with the JWT specification.

  Note

  Although the IDP used by the platform generates both of the above tokens in the JWT format, API client must use only the id_token as a bearer in the Authorization header.

  The id_token has a limited expiration period that is configured per realm in the IDP.

• refresh_token is used by the API client to refresh all of these three tokens. The refresh_token must have a much longer expiration period than the id_token. This token can be used only one time.

Warning

If a refresh_token is stolen, an attacker can use it to get the other tokens and refresh itself periodically unlimited times (if there are no preventive actions).

Authentication Process

The API client to platform interaction consists of two phases:

1. The API client authenticates on the IDP as a user (using a login and password pair) to receive security tokens. This is required once during the token expiration period.

2. The API client authenticates on the platform as a user (using the user’s access token) to send API requests for resource management.

Note

On a production installation, API clients cannot address their requests to the IDP or the platform. Brand endpoints are the frontend for such interactions.

To make the IDP trust an API client, this client must be registered in the IDP with a certain secret ID called CLI (Client ID).

In more detail, the first phase contains the following steps:

1. The API client sends a request for security tokens to the brand endpoint providing the login and password of a user. Along with that, the request must contain the CLI and other parameters considered later in this document.

2. The brand endpoint forwards the request to the IDP.

3. The IDP validates the CLI, authenticates the user, and if the credentials are valid, returns newly generated tokens as requested by the API client.

4. The brand endpoint forwards the IDP response to the API client. From now on, the API client can use the received id_token to authenticate on the platform when sending API requests to it.

In the second phase, the API client uses the platform API to achieve certain management goals. In this process, the API client uses the id_token as a bearer token in the Authorization header to authenticate itself on the platform as presented in the above diagram.

When the bearer token expires, the API client uses the refresh token to renew the security tokens. If the refresh token is expired, the API client requests for a new set of security tokens.

IDP Setup

The IDP is installed as a micro-service integrated with other parts of the platform.

Installation

Installation of the IDP and its integration with the platform requires at least the following steps:

1. Installation of the IDP by following the instructions in Deployment and Configuration of the Identity Service.

2. Installation of a brand endpoint by following the instructions in Branding Deployment.

An API client must know the domain name of the brand endpoint it will use for sending its requests to.

IDP Configuration

The key component of the IDP is the KeyCloak server installed as a Java application on the WildFly application platform. When you create a brand endpoint (also called a brand) in the platform, the corresponding realm appears in the IDP. The realm name is synced with the brand ID so that the name consists of the brand ID prefixed with “sr”. For example, if the brand ID is “3”, the realm name is “sr3”.

Note

A realm secures and manages security metadata for a set of users, applications, and registered OAuth clients.

It is important that your API client, which is also an OAuth client for the IDP, sends its requests for tokens to the realm where the API client is registered.

Configure the IDP through the KeyCloak console as follows:

1. Log in to the KeyCloak console by addressing your browser to https://<brand_domain_name>/auth/admin, for example, https://reseller1.example/auth/admin. Enter the login name and password of the KeyCloak administrator to enter the UI console. On the initially configured IDP, those credentials are “admin” and “admin”.

   Note

   In the production system, set a strong password for admin.

2. Find and open the realm bound to the brand endpoint you are going to use for both authentication and access to APS. Using the previous example, this will be “sr3”.

3. In the selected realm, register your API client. Make sure that:



   • Client ID (CLI) is a random secure string that allows the IDP to identify the client. In the example above, a simplified descriptive ID is chosen for better understanding of its use in the following examples in this document.

   • The direct access grant is enabled, which allows the API client to get security tokens associated with a specific user by sending a request for tokens directly in one step. In OAuth 2, this is known as the Resource Owner Password Credentials flow.

User Configuration

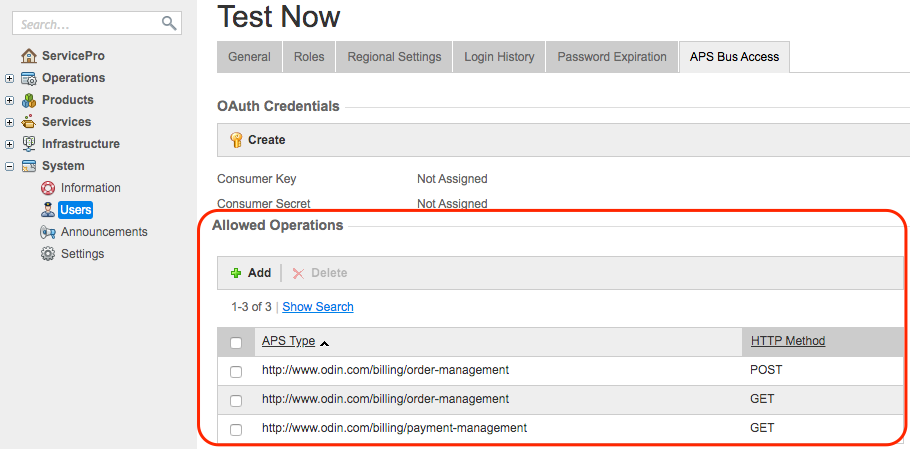

Similar to using the OAuth 1a protocol, an API client authenticates as a user, but a custom key and secret are not needed. To use certain custom operations on the APS bus, add the APS ID of those APS types that expose those operations and specify every allowed method by a separate privilege as in this example:

Sample Workflow

The following sections direct you through the configuration, authentication, and authorization processes using a sample configuration.

Configuration

In the sample installation, we use the following brand endpoint:

https://reseller1api.example

The API client will use the following configuration in a request to the IDP:

"username" : "agent007",
"password" : "password007",
"client_id": "ext_system_authenticated_on_aps",
"grant_type" : "password",
"scope": "openid"

The last two parameters require explanation:

• The specified grant_type indicates that the API client requires the IDP to return security tokens directly in the response to a request.

• The scope parameter must contain the “openid” string which requires the IDP to generate the id_token. This enables the API client to use the received id_token as the bearer token in its requests on the APS bus.

Getting Security Tokens

To get tokens, the request must look as follows:

curl --request POST \
   --url https://reseller1api.com/auth/realms/sr3/protocol/openid-connect/token \
   --header 'content-type: application/x-www-form-urlencoded' \
   --data grant_type=password \
   --data username=agent007 \
   --data password=password007 \
   --data client_id=ext_system_authenticated_on_aps \
   --data scope=openid

Note

Unlike other requests where the application/json media type is used, the content type here is a list of URL-encoded parameters. That is why the API client must send the content-type:application/x-www-form-urlencoded header.

A response looks as follows (long tokens are cut for brevity):

{
   "access_token": "eyJhbGciOiJSUzI1NiI...TnlVYjQXnd2LF30Q",
   "expires_in": 300,
   "refresh_expires_in": 36000,
   "refresh_token": "eyJhbGciOiJIUzI1NiI...fGj07YkFLrPogodxM",
   "token_type": "bearer",
   "id_token": "eyJhbGciOiJSUzI1NiI...J6ZnIly496bNRVkc_w",
   "not-before-policy": 0,
   "session_state": "7837907b-74ef-4cc8-afc1-33ee426fe2d8",
   "scope": "oss_profile_v1 roles_fake_v1"
}

The API client can use the returned id_token for 300 seconds. The expiration period for refresh_token is 36,000 seconds. During this period, the API client can refresh the tokens using this refresh_token for authentication. If the refresh_token is expired, the API client must use the request considered here again to generate new security tokens.

Sending a Request for Resources to the Platform

The API client sends a request for resources to the platform. The simplest one is the following:

curl --request GET \
  --url https://poamn-6982e93f967a.aqa.int.zone/aps/2/collections/accounts \
  --header 'authorization: Bearer eyJhbGciOiJSUzI1NiI...J6ZnIly496bNRVkc_w'

The response must contain a list of all resources available for the specified credentials.

Getting Refreshed Tokens

When the id_token is expired but the refresh_token is still valid, the API client must send a request for refreshing the tokens before it sends its requests on the APS bus. This time, authentication is granted by the refresh_token without providing any other user credentials:

curl --request POST \
  --url https://poamn-6982e93f967a.aqa.int.zone/auth/realms/sr3/protocol/openid-connect/token \
  --header 'content-type: application/x-www-form-urlencoded' \
  --data grant_type=refresh_token \
  --data client_id=ext_system_authenticated_on_aps \
  --data refresh_token=eyJhbGciOiJIUzI1NiIsInR5cCIgOiAiSldUIiwia2lkIiA6ICJjYjkyNGFjZi01NjhhLTRmZjMtYTZmYy02YzM0ZTMxYTA5YTAifQ.eyJqdGkiOiI3ZTM2OWQ3MS1mY2Y3LTRjZDMtOTA3My04MmJhYWYwZWFmYjgiLCJleHAiOjE1ODYxODYxMTUsIm5iZiI6MCwiaWF0IjoxNTg2MTUwMTE1LCJpc3MiOiJodHRwczovL3BvYW1uLTY5ODJlOTNmOTY3YS5hcWEuaW50LnpvbmUvYXV0aC9yZWFsbXMvc3IzIiwiYXVkIjoiaHR0cHM6Ly9wb2Ftbi02OTgyZTkzZjk2N2EuYXFhLmludC56b25lL2F1dGgvcmVhbG1zL3NyMyIsInN1YiI6ImY6OTllYjBlNGItOWRhNy00NDc1LWFhZGUtNDY1MTU2M2RlODA4OjEiLCJ0eXAiOiJSZWZyZXNoIiwiYXpwIjoiZXh0X3N5c3RlbV9hdXRoZW50aWNhdGVkX29uX2FwcyIsImF1dGhfdGltZSI6MCwic2Vzc2lvbl9zdGF0ZSI6ImYxZjA5ZjFlLWMzNzktNDc5Zi1hNzEzLWNkODk2YzU5MmY4YiIsInNjb3BlIjoib3BlbmlkIG9zc19wcm9maWxlX3YxIHJvbGVzX2Zha2VfdjEifQ.-BPDWUCIzwrmLAzc4GgB8sKu-4ncc4Lf-SyNga_fZQw

If successful, the response looks like this:

{
  "access_token": "eyJhbGciOiJSUzI1NiI...zP7tHzPGVRBygLwng",
  "expires_in": 300,
  "refresh_expires_in": 35986,
  "refresh_token": "eyJhbGciOiJIUzI1NiI...fGj07YkFLrPogodxM",
  "token_type": "bearer",
  "id_token": "eyJhbGciOiJSUzI1NiI...fZlE5H8QrqLuAwV6Lw",
  "not-before-policy": 0,
  "session_state": "f1f09f1e-c379-479f-a713-cd896c592f8b",
  "scope": "openid oss_profile_v1 roles_fake_v1"
}

If the refresh_token is expired, the API client gets the following error response:

{
  "error": "invalid_grant",
  "error_description": "Refresh token expired"
}

This means that the API client must send a request for security tokens using the user login and password credentials as described in the Getting Security Tokens section.
