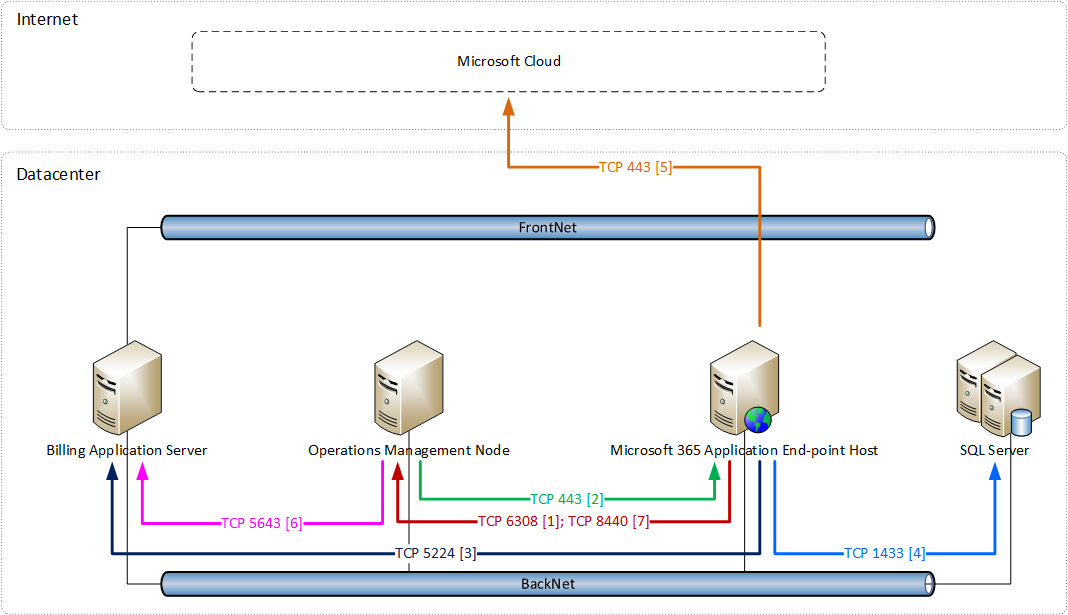

This scheme outlines the deployment architecture of the Microsoft 365 application and provides information about connections between integration components.
The following connections are shown:
- [1]: This is used for access to APSC from the application endpoint.
- [2]: This is used for access to the application endpoint from APSC.
- [3]: The Billing Public API.
- [4]: This is used for access to Microsoft 365 gateway application databases. This connection is used if an external SQL Server instance is deployed. See Preparing SQL Server Databases for details.
- [5]: This is used for making provisioning calls from the application endpoint to the Microsoft cloud.
- [6]: This is used for access to the Billing application endpoint. See Configuring Billing for details.
- [7]: The Operations Public API.
