Deploying Odin Automation UI with Branding on Linux

Odin Automation supports the following deployment models for UI and branding:

  • UI and branding access point on Linux node (CentOS/RHEL 6,7), having access to FrontNet and BackNet (one-node deployment). This implementation of branding makes it independent from any type of shared hosting deployment.

  • UI and branded access point on Cloud Linux web cluster (formerly, Cloud Linux web cluster NG), having access to FrontNet and BackNet (cluster deployment).
  • UI and branded access point on Cloud Linux web server (formerly, Cloud Linux web server NG), having access to FrontNet and BackNet (one-node deployment).

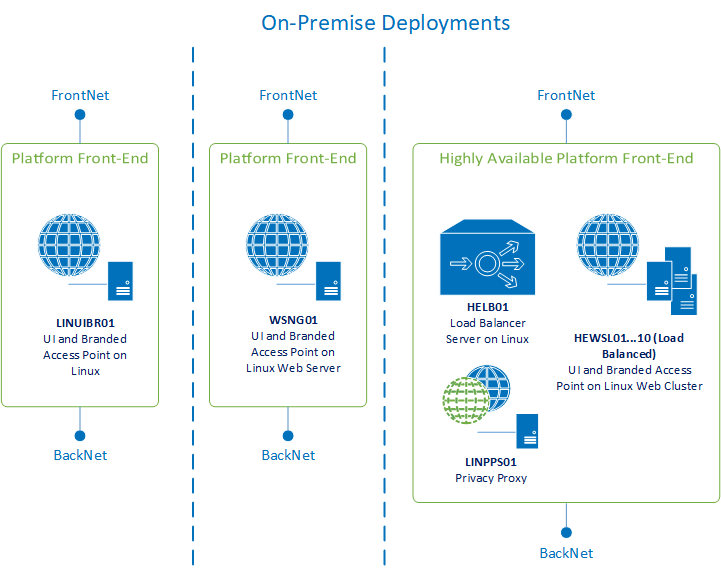

All on-premise deployment models are shown on the scheme below.

UI and branding services (hereinafter referred to as "UI") are now hosted on a single node or cluster, a separate branding node is not needed.

Requirements for UI node:

  • should be accessible from FrontNet as well as BackNet,
  • IP pool with purpose Branding configuration should be assigned,
  • should be marked as Ready to provide.
