Deploying Reporting and Data Export

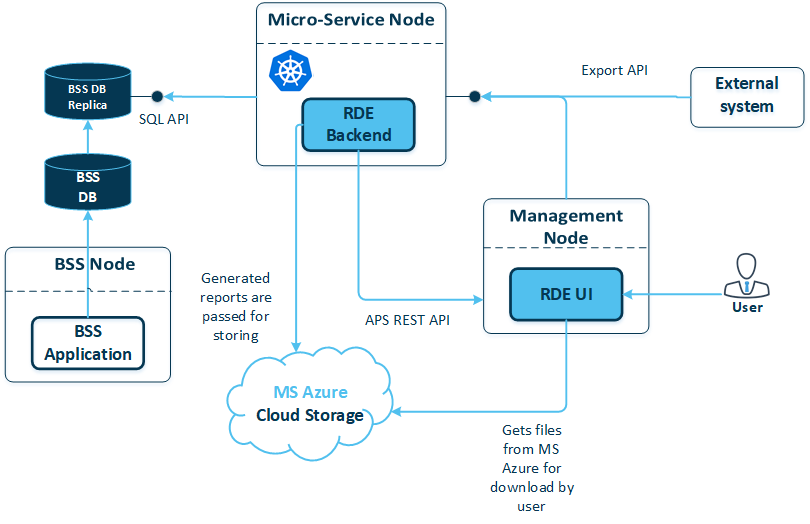

High-Level Architecture

The RDE is a microservice with its own release cycle. It is not included in the CloudBlue Commerce distribution package by default and must be installed on the platform as an APS application.

The RDE microservice consists of two components:

RDE UI, hosted on the management node
RDE backend, hosted in a separate container on the service node with installed Kubernetes

Installation Prerequisites

Before importing the RDE APS package, ensure that:

Odin Automation version 8.0, 8.2, or 8.3, or CloudBlue Commerce version 20.4 or later is installed
A service node with a Kubernetes cluster is configured and registered in the CloudBlue Commerce platform
The RDE has read access to BSS Database. For configuration instructions, please refer to Allowing a Microservice to Access the BSS Database PostgreSQL Server.

Note: Since RDE needs only read access, for better load balancing, using a BSS DB replica with RDE is recommended.

Hardware Requirements

The minimum Kubernetes resources required for the microservice deployment, including on-premise Kubernetes cluster deployment, are as follows:

Requests:
CPU:	1
Memory:	1280Mi

Firewall Requirements

The following ports must be open on the micro-service node and the BSS database replica node:

From	To	Protocol	Port	Purpose
CloudBlue Commerce Management Node	Micro-service node	TCP	8081	For access to the RDE service back end (HTTPS is used for communication)
Micro-services node	BSS database replica node	TCP	5432	For connection to the PostgreSQL database

How to Install RDE

Before installing the RDE application, select from one option:

Set up MS Azure cloud storage to store generated reports, or
Set up SFTP storage to store generated reports.

You also need to restart the following services on the management node before RDE installation:

pau
pa-agent

After installing the RDE application, the following scenarios will be available for resellers:

Generating a one-time report with aggregated billing data
Configuring generation of periodic reports with aggregated billing data

How to Upgrade RDE to the Latest Version

The upgrade procedure is different depending on your currently installed RDE version.

Your current RDE version is 1.3-117 or later

To upgrade the existing application with MS Azure cloud storage, run this command:

# helm upgrade rateddataexport a8n/rateddataexport --version <version>--set jdbcconnectionparams='?sslmode=require&ApplicationName=rateddataexport' --set devmode.enabled=false

To upgrade the existing application to store new reports in SFTP storage instead of MS Azure, run this command:

helm upgrade rateddataexport a8n/rateddataexport --version <version> --set sftp_host=<SFTP_HOST> --set sftp_port=<SFTP_PORT> --set sftp_login=<SFTP_LOGIN> --set sftp_password=<SFTP_PASSWORD> --set azconnstr=' ' --reuse-values

Your current RDE version is earlier than 1.3-117

To upgrade the existing application, complete the following steps:

On the CloudBlue Commerce management node, run the following command:
```
# kubectl get nodes -o yaml | grep address:
```
For each IP address in the response, run the following command:
```
# ssh <user>@<IP_address> sudo mkdir -p -m 777 /opt/rde_sql
```
where
- <user>: root if local Kubernetes is used, or autodeploy if AKS is used.
- <IP_address>: the IP address from the output above.

Update the RDE endpoint in the OSS DB:

begin;
update aps_application_instances set uri='https://rateddataexport:8081/rest' where uri='https://rateddataexport-com-odin-billing:8081/rest';
update aps_application set endpoint_uri='https://rateddataexport:8081/rest' where endpoint_uri='https://rateddataexport-com-odin-billing:8081/rest';
delete from aps_container where container_id='rateddataexport-backend.com.odin.billing';
commit;

Reconfigure the RDE:
1. Write the existing settings for the RDE back end to the rateddataexport.yaml file.
```
# helm get values rateddataexport-backend.com.odin.billing -a > rateddataexport.yaml
```
2. Decode base64 values (oauthkey, oauthsecret, dslogin) in the rateddataexport.yaml using the following commands:
```
# grep oauthkey rateddataexport.yaml | cut -f2 -d' ' | base64 -d
```
```
# grep oauthsecret rateddataexport.yaml | cut -f2 -d' ' | base64 -d
```
```
# grep dslogin rateddataexport.yaml | cut -f2 -d' ' | base64 -d
```
3. Replace the oauthkey, oauthsecret and dslogin values in the rateddataexport.yaml file with the respective decoded values from the previous step.
4. Remove the following fields in the rateddataexport.yaml:
  - dsport
  - maxdbpoolsize
  - mindbpoolsize
Remove the previous version of RDE by running the following command on the MN:
```
# helm delete rateddataexport-backend.com.odin.billing --purge
```
Install the new version of RDE (the necessary settings will be taken from the .yaml file):
```
# helm install a8n/rateddataexport -n rateddataexport -f rateddataexport.yaml --set azconnstr=<AZURE_CONNECTION_STRING>
```
where
- <Azure_connection_string>: the MS Azure Cloud Storage connection string.
