Layout

Once a designer refined the list of views and for each view, it is clear the type of data to be displayed and the actions to be available for a user, the next step is to estimate possible layout for every view.

Predefined Layout

To ensure UI consistency from view to view on the top level, the platform user panel puts a custom view or wizard within a predefined outer layout.

../../../../../_images/pageContainer1.png

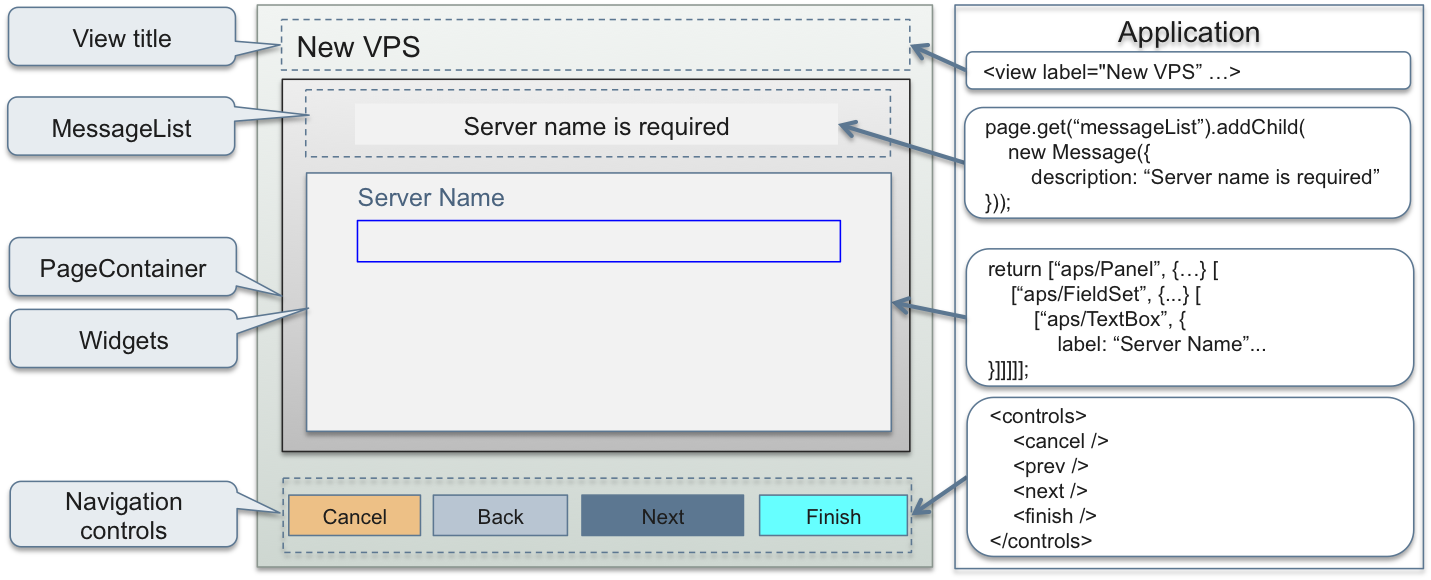

The predefined layout includes the following elements:

  • The view title - always on top

    An application assigns a value to it by the view label attribute in the metadata declaration.

  • Navigation controls - always on bottom

    An application requires the needed controls in the view metadata declaration. The view JS code can redefine the button event handlers or leave the default handlers as is.

  • PageContainer - the top level container based on the aps/PageContainer JS module

    The APS build utility adds this container to every APS package for all views of an application, thus implementing the single-page technique in UX1.

  • MessageList - a predefined container based on aps/MessageList with the predefined widget ID "messageList"

    A view JS code identifies this container by its ID to manage messages inside it, that is to create, edit and remove messages.

  • The rest space called “Widgets” here - the space where a view lays out its widgets

    A view JS code loads here its widgets based on APS JS modules.

Top Level Containers

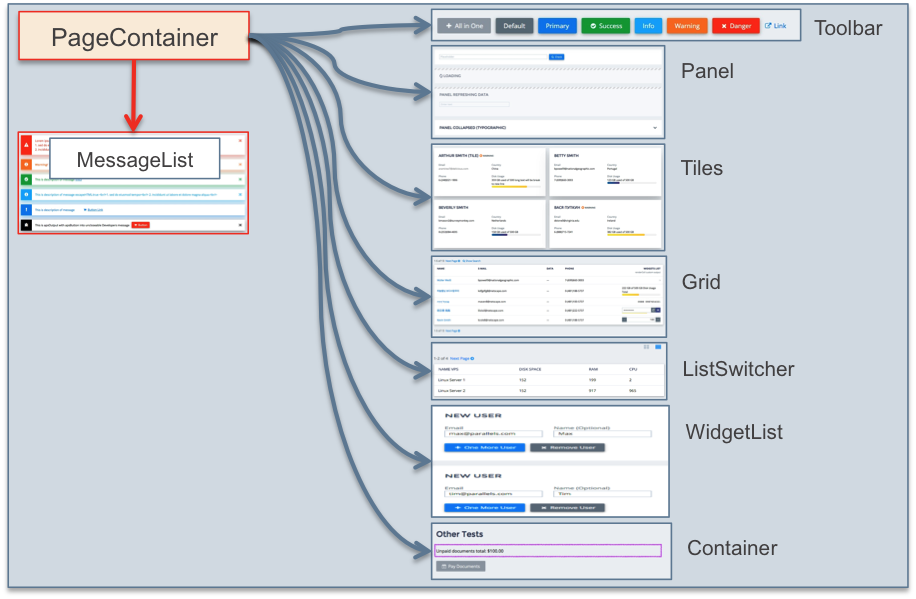

Although APS JS SDK provides many widget containers, a view JS code can use only a few of them on the top level, that is inside PageContainer, as presented in the following diagram:

../../../../../_images/top-containers1.png

Use those containers on the top level for the following purposes:

  • Toolbar - defines a set of buttons. The view JS code must also define a handler for each button.

  • Panel - typically used to implement an HTML form with various widgets inside it to show and configure a resource or a set of resources.

  • Tiles - contains widgets based on the aps/Tile and its derivatives to present a short list of resources. Use Grid for a long list of resources.

  • Grid - a complex container with a table, a toolbar, and a search engine to present and manage unlimited list of resources in the most flexible way.

  • ListSwitcher - a complex container that includes a pair of Tiles and Grid definitions as the two modes to present data. This allows a user to see a resource list in a selected mode.

  • WidgetList - provides a convenient way for a user to dynamically add or delete resource in a list through a bound data model.

The Layout Rules document provides the complete information about widget layout hierarchy and rules.

Layout Grid

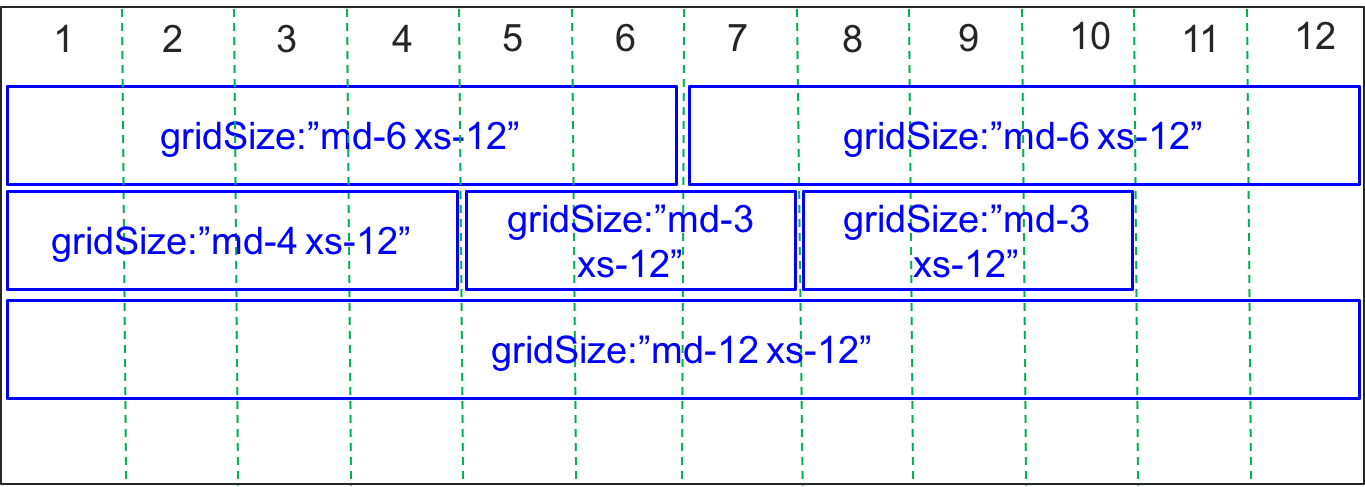

As explained in the Context-Sensitive Properties section, some containers make their widgets use the gridSize property. This property allows a developer to align the child widgets as needed inside a container. The gridSize property also makes the widget layout responsive to the display mode (medium size md for desktops and extra-small size xs for phones) by assigning the widget size differently for those two modes, for example:

../../../../../_images/view-profile-group-grid.png

Since total size of all widgets in a row cannot exceed 12, it is easy to do various layouts as demonstrated in the above example for the md display. The widgets of the same configuration in a phone will be aligned vertically, because xs-12 is assigned for every widget.
