View

The document describes ordinary views, or simply views, used in static and dynamic navigation.

Metadata Declaration

Each view must be declared in metadata.

Warning

To ensure a more stable and simple code for a single-page application in UX1, it is NOT allowed to assign a source code to more than one view or view-plugin.

This restriction is not applicable to CP, where every view is loaded into a separate IFrame.

View Structure

In the UX1 environment, all views of an application are loaded in a single HTML page as described in the Single Page Application document.

The source JavaScript file declared in metadata must declare, define, and return a view module inheriting either aps/View or aps/biz/MainView APS JS SDK module.

Using aps/View

General structure of a view looks as follows:

define([
   "dojo/_base/declare",
   "aps/View",
   // Other Modules
   ...
], function (declare, View, ...) {
   return declare(View, {
      init: function() {
         /* Initializes data only the first time this view is called
            after the base page is loaded or re-loaded.
            It is missed in all subsequent cases when the view is called.
         */
      },

      onShow: function() {
         /* Performs some actions before visualizing widgets.
            On completion of this method and before the onContext method is completed,
            widgets are visible but not available for operations with them
         */
      },

      onContext: function() {
         /* The method is called once the visual context is received.
            Usually it assigns actual values to variables defined on the Init phase.
         */
      },

      onHide: function() {
         /* The method performs the required actions, for example, clean up some fields,
            when opening the view
            for the second and every subsequent time after the view was closed (hidden).
         */
      }
   });
});

Follow Inclusion Rules when adding custom JS modules to the define method.

Warning

We do not recommend adding custom properties to a View object derived from aps/View to avoid occasional undesired match with a new property that might appear in next updates of aps/View. For example, the following code is NOT recommended:

return declare(View, {
   pageContainer: null,
   viewContext: new appContext(),
   defaultStepParams: null,

   //...
});

In a rare case, when a custom property is absolutely necessary, ensure a unique name for the property, for example, by adding a unique prefix reflecting your application specifics.

Using aps/biz/MainView

Everything specified for aps/View is valid for the case the aps/biz/MainView module is defined instead of aps/View. In addition, the aps/biz/MainView module interacts with the platform BSS (business support system) to inform customers about the changes in the subscription status.

Keynotes:

  • The aps/biz/MainView must be used to define the view that presents the application main service, that is the view opened when a customer selects the application service in the navigation panel. For example:

    define([
        "dojo/_base/declare",
        "aps/biz/MainView",
        // Other Modules
        ...
    ], function (declare, View, ...) {
        return declare(View, {
           ...// The same code as used in case when aps/View is defined
        });
    });

  • Meta definition of the view must provide a placeholder for plugging the biz API module. That is, in APP-META.xml, the view declaration must contain the required placeholder, for example:

    <view id="servers" label="Servers" src="ui/servers.js">
       <plugin-placeholder id="http://www.aps-standard.org/core/package#biz"/>
       <view id="server-edit" label="Edit VPS" src="ui/server-edit.js">
          <var name="vps" type-id="http://aps-standard.org/samples/async1p/vps/1.0"/>
          <controls>
                  <cancel/>
                  <submit/>
          </controls>
       </view>
    </view>


With the above definitions, when a subscription status changes, the customer will get a pop-up message and a new notification about it.

  • Message on the main view:

    ../../../../../_images/mainview-message.png
  • Notification:

    ../../../../../_images/mainview-notification.png

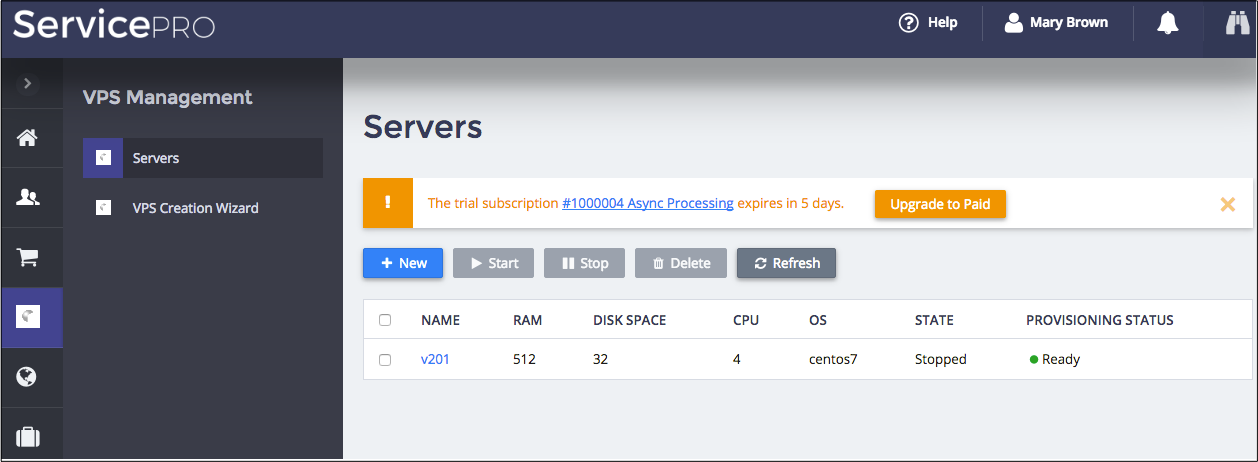

In a case, a customer subscribes to a trial period, the service view will remind about the expiration date and prompt to upgrade the trial period to a paid period:

../../../../../_images/mainview-upgrade.png

Once the customer clicks on the Upgrade to Paid button, the control panel forwards the user to the subscription upgrade wizard that assists in generating a change order and switching to another subscription period.
