Service in User Profile

In a user profile, an application can provide some service data and tools for managing the application service for the selected user.

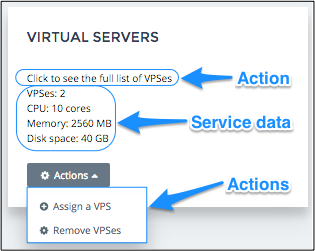

../../../../../_images/single-user-service.png

For this purpose, the application must plug its view-plugin into the User Manager placeholder http://www.parallels.com/ccp-users#userInfo.

In this document:

API

The User Manager calls the following methods that must be defined in the view-plugin:

  • init(mediator) - receives the mediator object and defines of the setServiceData method inside the mediator object as mentioned below.

  • mediator.setServiceData(data) - is the main method. It must return a UI tile presenting the service data and tools to be available in the user profile.

Input

  • The init(mediator) method gets the mediator object used for exchanging data between the User Manager and view-plugins.

  • mediator.setServiceData(data) method receives the data object that represents the selected user in accordance with the APS core user schema. It also contains all assigned services as the data.services array.

Data Processing

The mediator.setServiceData(data) method processes service data available in the data object. Then it defines a tile that presents the data and provides tools for managing the service for the selected user.

Output

The mediator.setServiceData(data) method returns the UI tile widget container that the User Manager uses to present service data and tools in the profile of the selected user.

Example

Refer to the demo process of developing such a view.
